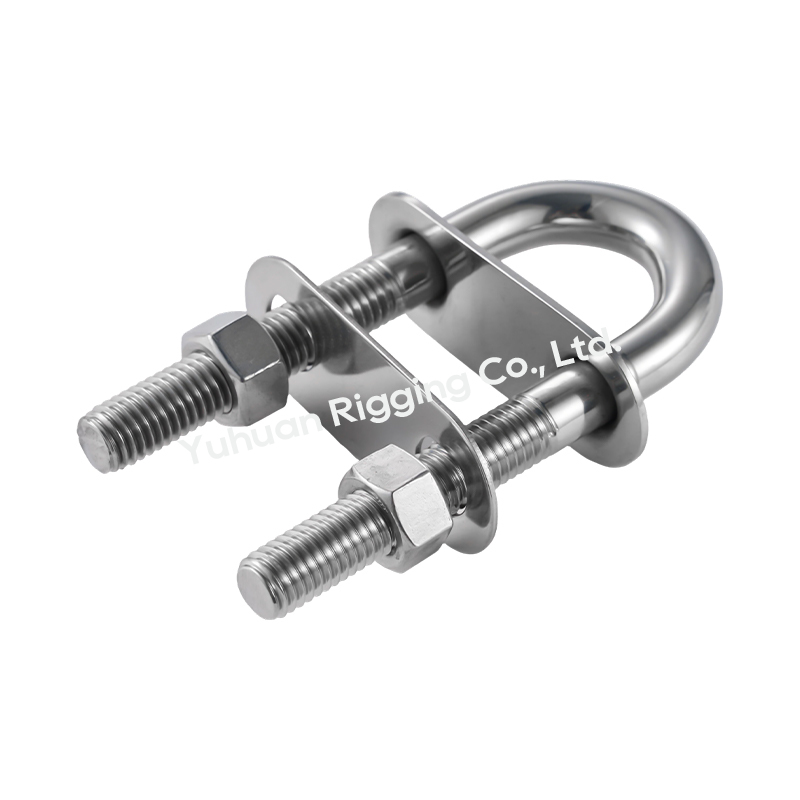

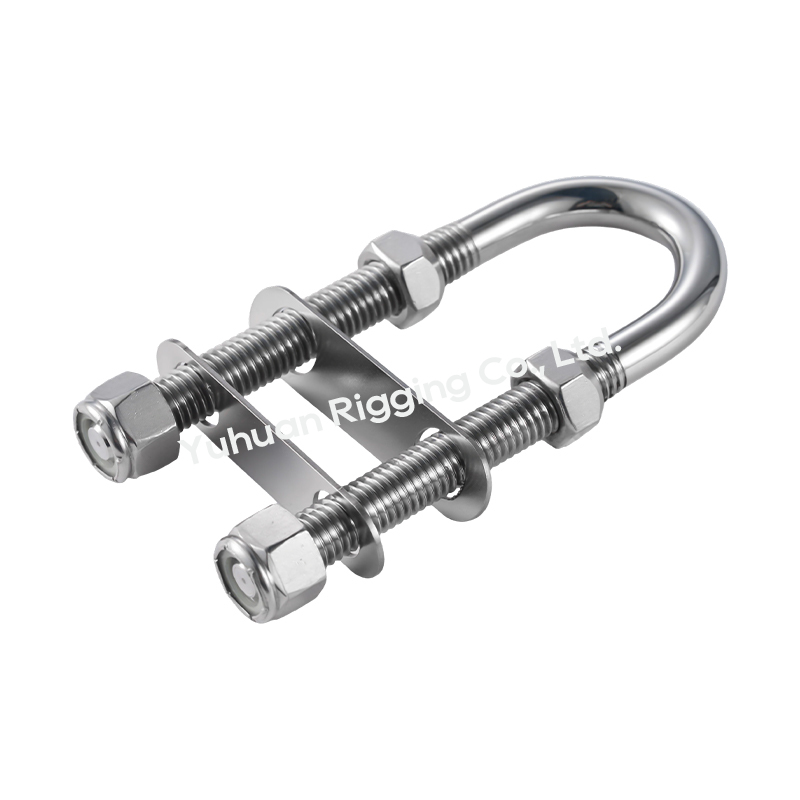

Clamps around rails, pipes, or stanchions with a secure two-nut system. The 316 stainless steel construction resists pitting even when submerged. A curved backing plate spreads clamping force evenly, preventing dimpling of softer tubes. Use for attaching rod holders, antennas, or anything that mounts to cylindrical surfaces.
Structure: U-shaped bolt with matching nuts and backing plate. Clamps to round tubes or posts.
Material: Marine-grade 316 stainless bolt, nuts, and plate. High strength, impact-resistant.
Hardware: Two nuts and an anti-slip plate included. Prevents loosening and rotation.
Finish: Mirror polished. Corrosion-resistant, easy cleaning.
Corrosion Resistance: Excellent pitting resistance for high-salinity waters.
Manufacturing: Precision bent and machined threads. Accurate fit around tubes. Holds tight.
Origin: Made in China. Custom U-bolt inner diameters, thread lengths, and thread specs available.
| Part No | Length | Width | Stock Diameter |
| 912507 | 78mm | 35mm | M5 |
| 912506 | 90mm | 35mm | M6 |
| 912502 | 105mm | 35mm | M8 |
| 912501 | 100mm | 35mm | M8 |
| 912503 | 110mm | 45mm | M8 |
| 912504 | 120mm | 45mm | M8 |
| 912508 | 100mm | 50mm | M10 |
| 912500 | 130mm | 50mm | M10 |
| 912505 | 155mm | 65mm | M12 |
